| AC charging pile | |
| name | 7kW AC Charging Station · Home Charging |
| Model | AC7-32A/220V |
| Dimensions (mm | 211*340*85 |
| human-computer interaction | 4.3-inch touch screen |
| INPUT VOLTAGE | AC220V |
| Rated current | 32A |
| output power | 7kw |
| work environment | altitude:≤2000m;temperature:-20℃+50℃ |
| Charging method | Plug and charge/swipe card option |
| Networking method | 4G、Ethernet |
| input frequency | 50±5Hz |
| Protection function | Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc |
| Charging interface | GB/T20234.2-2015 |
| Charging cable length | 标配3.5米(optional） |
| protection grade | IP54 |

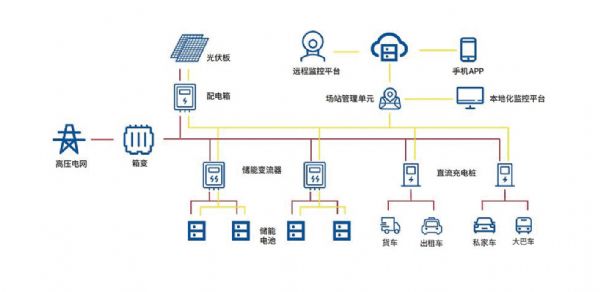

By utilizing advanced microgrid technology, photovoltaic, energy storage, and electric vehicle charging stations are combined to form an intelligent integrated system for photovoltaic, energy storage, and charging that integrates power generation, distribution, consumption, and management.
